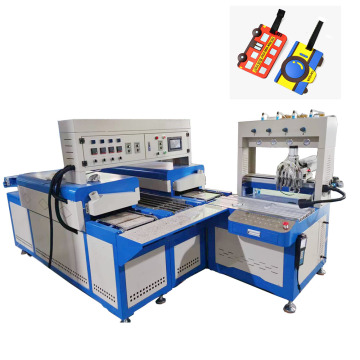

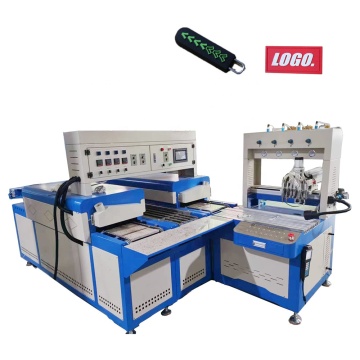

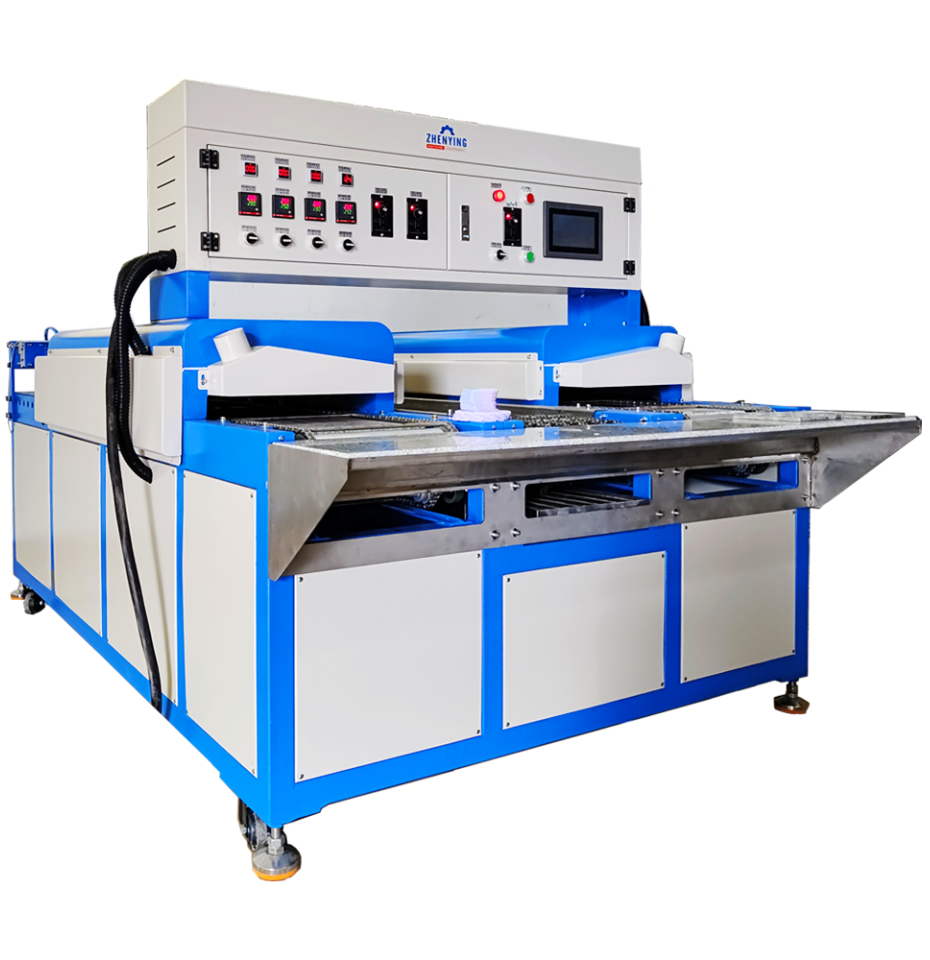

Shoe Upper Machine (PVC Tunnel Oven Production Line)

Advanced Automation for Footwear & PVC Product Manufacturing

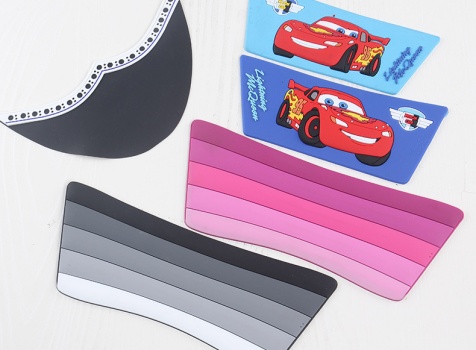

The Shoe Upper Machine, also known as a PVC Tunnel Oven Production Line, is a high-efficiency industrial system designed for mass-producing shoe uppers, soles, slippers, and anti-slip mats with precision and consistency. This automated production line integrates heating, forming, and cooling processes to deliver high-quality PVC-based footwear components and related products.

Key Applications & Machine Compatibility

Our Shoe Sole Machine and PVC Sole Machine specialize in high-efficiency production of durable, anti-slip soles for various footwear types. These automated systems feature precision molding, adjustable temperature control (80°C-220°C), and fast cooling for consistent output of EVA, PVC, and rubber soles.

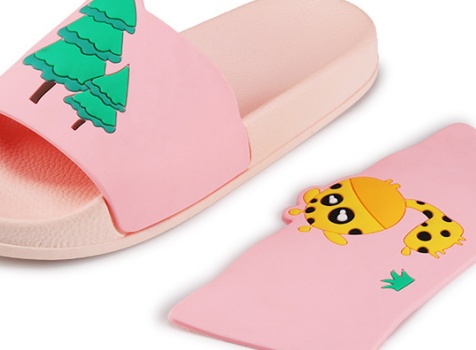

The Slipper Upper Machine streamlines production of comfortable slipper uppers with reinforced edges, supporting customizable designs through quick-change molds.

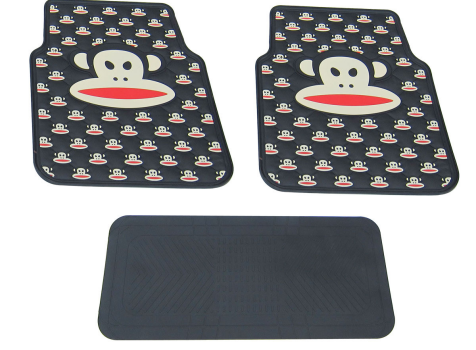

For safety applications, our Anti-slip Mats Machine produces textured PVC mats with excellent traction, ideal for industrial and household use.

Technical Features

✔ Modular Tunnel Oven Design – Adjustable length (5m–20m) for different production needs
✔ Precision Temperature Control – ±2°C accuracy for consistent curing
✔ Automated Conveyor System – Variable speed (0.5–5m/min) for optimized workflow
✔ Multi-Stage Cooling Zone – Ensures product stability before packaging
✔ Energy-Saving Heating – Ceramic infrared panels reduce electricity usage by 30%

Industry Applications

• Footwear Manufacturing (sports shoes, slippers, sandals)

• Safety Products (anti-slip mats for bathrooms, factories, vehicles)

• Promotional Items (custom-branded footwear and mats)

• Recycled PVC Processing (eco-friendly sole production)

Why Choose Our PVC Tunnel Oven Line?

• Higher Output – Produces 500–5,000 pairs of soles/uppers per day

• Lower Rejection Rate – <1% defect ratio due to automated quality control

• Easy Maintenance – Self-cleaning conveyor and accessible heating elements

• Smart Monitoring – IoT-enabled diagnostics for real-time production tracking

This Shoe Upper Machine (PVC Tunnel Oven Line) is the ultimate solution for footwear manufacturers seeking efficiency, versatility, and quality in PVC sole and upper production. Whether for slippers, anti-slip mats, or custom shoe components, this system ensures high productivity with minimal waste.
