Mold design plays an important role in silicone label manufacturing. It affects material filling, product details, air removal, demolding, and finished-label consistency.
Quick Answer
Mold design affects silicone label quality by determining cavity geometry, material flow, air escape, and product release. Manufacturers should consider cavity depth, filling paths, venting, mold dimensions, and silicone properties. Matching the mold to the dispensing method and vulcanization process helps improve filling consistency and reduce production defects.
1. Cavity Design and Product Details
The mold cavity defines the label's shape, thickness, texture, and fine details.
Very narrow channels, sharp corners, or uneven cavity depths may make silicone filling more difficult. Complex multi-color patterns also require the mold design to match the dispensing sequence and material placement.
What to check:
- Label dimensions and thickness
- Fine details and narrow sections
- Cavity depth and geometry
- Compatibility with silicone viscosity and flow
Mold design should be based on the actual product drawing and material requirements.
2. Mold Venting and Air Removal
Air can become trapped in cavities during filling. If it cannot escape effectively, bubbles, pinholes, or incomplete details may appear on the finished label.
Appropriate venting and, where suitable, vacuum-assisted processing can help manage trapped air. However, vacuum does not replace proper mold design.
What to check:
- Potential air-trapping locations
- Vent position and effectiveness
- Mold cleanliness
- Whether the process requires vacuum assistance
The right approach depends on the mold structure, product geometry, and manufacturing method.
3. Filling Paths and Multi-Color Accuracy
For multi-color silicone labels, the mold and dispensing path must work together. Incorrect material placement or unsuitable filling sequences may lead to color overlap, gaps, or inconsistent boundaries.
Manufacturers should coordinate mold layout with dispensing accuracy, material flow, nozzle movement, and color sequence.
For complex designs, sample testing can help confirm whether the proposed mold and dispensing process achieve the required result.
4. Mold Compatibility With Vulcanization
A mold must also suit the heating, pressure, and curing requirements of the silicone material.
Uneven mold contact or unsuitable process conditions may affect product shape, surface quality, and consistency. Mold dimensions should match the machine's working area, while the process should be validated for the selected silicone formulation.
Before production, confirm:
- Mold dimensions and machine working area
- Mold contact and pressure requirements
- Required curing temperature and time
- Demolding method and product-release requirements
5. Match the Mold to the Machine
Mold design and equipment selection should be considered together—not as separate purchasing decisions.
A Silicone

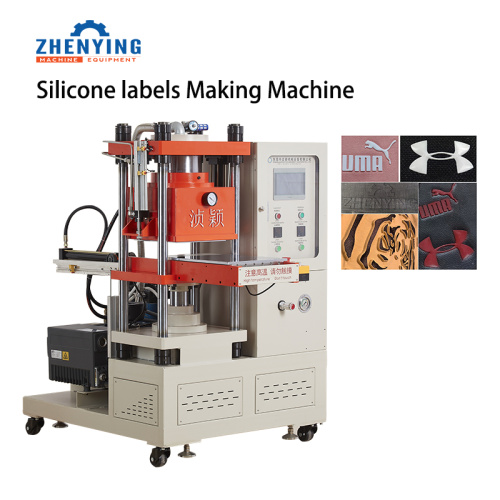

dispensing machine focuses on accurate silicone deposition into the mold. A Silicone Heat Transfer Label Machine supports controlled heating, pressure, and vulcanization. Depending on the production process, vacuum and adhesive application may also be required.
At Zhenying Machines, we manufacture silicone and PVC soft-rubber processing machinery and support customers with equipment, molds, raw materials, and technical training.
Explore our Silicone Heat Transfer Label Machine to learn more about equipment configurations for silicone label production.
Key Takeaways
Good mold design supports accurate filling, effective air removal, consistent product details, and easier demolding. For reliable production, manufacturers should match mold geometry and venting with silicone properties, dispensing requirements, and vulcanization conditions.
Planning a new silicone label project? Prepare your product drawing, dimensions, color requirements, expected output, and mold details before selecting equipment.
FAQ
Can a poorly designed mold cause bubbles in silicone labels?
Yes. Inadequate venting or geometry that traps air can contribute to bubbles and incomplete filling.
Does every silicone label require vacuum processing?
No. The need depends on product design, material properties, mold structure, and quality requirements.
Should the mold be selected before the machine?
The mold and machine should be planned together. Product design and process requirements help determine both the mold configuration and suitable equipment.
