Automatic mold opening removes a repetitive manual operation from the end of the molding cycle.
After hot pressing and cooling, the machine automatically opens the mold instead of requiring the operator to perform this operation manually.
The company states that production testing showed an approximately 30% improvement in overall working efficiency with its automatic mold-opening function. This is a production-test result, not a guaranteed output increase for every product or factory.
The machine is also designed so that one operator can manage 2–3 machines simultaneously under suitable production conditions, reducing the amount of operator attention required for repetitive mold-opening operations.
Not necessarily in the sense of changing the physical molding capacity of the machine.
This distinction is important.
Machine capacity is primarily determined by the molding cycle, mold cavities, process requirements, and machine configuration.
Production efficiency also includes labor utilization, handling time, downtime, and workflow integration.
Automatic mold opening mainly improves the second category.
For example, if a machine requires a fixed heating and cooling time, automatic mold opening cannot simply eliminate those thermal processing requirements. Its benefit comes from reducing manual intervention and making the overall workflow more integrated.
What Role Does Mold Design Play?
The mold is one of the most important factors affecting production capacity.
A multi-cavity mold can produce several products during one machine cycle
For example:
1 cavity → 1 product per cycle
6 cavities → 6 products per cycle
12 cavities → 12 products per cycle
The actual suitability of a multi-cavity mold depends on product dimensions, mold structure, material distribution, heating, cooling, and machine working area.
Zhenying's current model has a 300 × 300 mm template size, so mold dimensions need to be designed within the machine's working requirements.
How Does Machine Configuration Affect Efficiency?
Several machine features contribute to the overall production workflow.
PLC Control
PLC control allows the machine to coordinate production stages according to programmed parameters.
Water-Circulating Cooling
Controlled cooling helps stabilize the molded PVC product before mold opening.
Integrated Baking and Molding
Combining baking and molding reduces the need to move molds between separate processing stations.
Automatic Mold Opening
Automatic opening reduces repetitive manual mold handling at the end of the cycle.
The current Zhenying model uses PLC control, water-circulating cooling, and an integrated baking and molding structure.
How Should Manufacturers Calculate Capacity?
Before purchasing a machine, manufacturers should collect five key pieces of information:
- Required daily output
- Product size and weight
- Number of products per mold
- Estimated cycle time
- Available production hours
For example, if a mold produces 8 keychains per cycle and one complete cycle takes 3 minutes:
60 ÷ 3 × 8 = 160 theoretical pieces/hour
If the machine operates for 8 hours:
160 × 8 = 1280 theoretical pieces/day
This is a theoretical calculation. Actual output will be affected by setup, material preparation, inspection, mold changes, downtime, and operator workflow.
What Is More Important: Speed or Overall Efficiency?
For PVC keychain production, higher machine speed does not automatically mean higher usable output.
A productive system needs to balance:
Cycle Time + Mold Cavities + Product Quality + Operator Utilization + Machine Uptime
Increasing speed without maintaining stable molding conditions can create quality problems or additional rework.
For this reason, manufacturers should evaluate usable production capacity, not simply the fastest possible machine cycle.

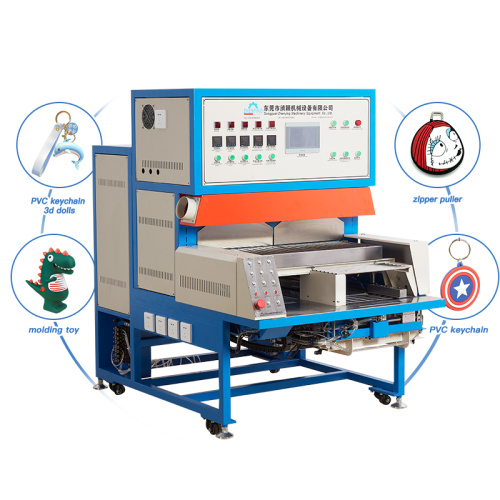

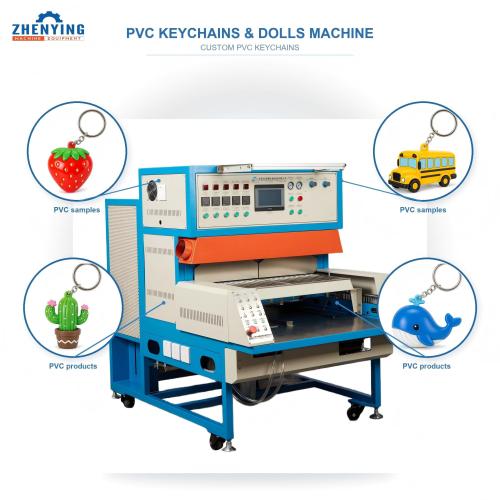

Zhenying Automatic PVC Keychain Machine
Zhenying Machines' PVC Keychain Making Machine is designed for automated production of:
- 3D PVC keychains
- Cartoon PVC figures
- Soft PVC toys
- Double-sided zipper pulls
- Promotional gifts
- Customized PVC products
The current ZY-PD08 model has a 300 × 300 mm template size, 16.5 kW power, PLC control, water-circulating cooling, and a 1T clamping-pressure specification.
Its production system integrates:
Baking → Water Cooling → Hot Pressing → Cold Pressing → Mold Opening
For manufacturers planning production capacity, the most reliable approach is to calculate output from the actual product, mold, cycle time, and cavity configuration rather than using a generic pieces-per-hour figure.
The right PVC keychain machine is not simply the fastest machine. It is the machine that delivers the required output with stable quality, efficient labor utilization, and a production cycle matched to the product.
